Products --> Depositor --> Drops Depositor




Item:

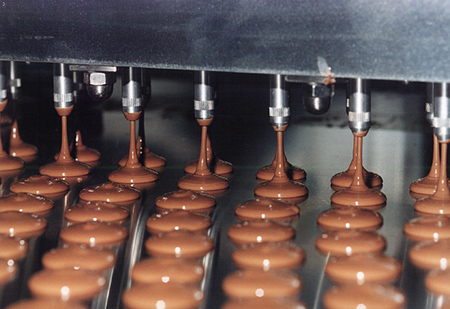

Chocolate Drops Depositor With 10 meters Cooling Tunnel,

Item Number:

QDJ500 ,Conveyor belt width 500mm.
Details:

Capacity:15-20 times /minute, 64 pcs /time
If 1.0 g drops,57-77kg/hour

6kw cooling compressor
with water cooling condensor.
Need plus US$750 if change to air cooling condensor
4kw electrical heatrer
0.1 cubic meter air compressor

There are two type of cocoa fats, one is nature cocoa fat,
Another is substitue cocoa fat.
Customer need to advise us which type you use,So that we will adjust some devices in the machine.
