Products --> Candy Plant --> Hard Candy Line




Item:
Aerated Sweets Production Line
Item Number:
CTJ400 Line
Include:
HTG200 Sugar Melting Tank 200L
CCG200 Storage Tank 200L
FDJ001 Fondant additive machine
CTJ400 Cooking & Aerating Plant
FLD12 Cooling Platform 1x2 M
JTJ-1 Sugar Extruder
FLD290 Candy Cooling Tunnel
QTJ300 Candy Cutter
Comments:

After cooling platform before extruder, you need? build a 24 ¡ãC constant temperature aging room of 30 cubic meters( 3m x5m x2m) , where the bagged semi product should be stored for 24 hours for aging.

Packing Sizes:

1)2000x1000x1500mm

2)1000x1000x1500mm
3)4000x1300x1500mmx2

4)2400x1000x1500mm

5)4000x1500x3000mm
6)1500x1500x1500mmx2





Remarks:
1)Client need to build a Aging Room.
2)Need to buy a 1 ton 8kg air pressure steam boiler in local market.
3)If client need Wrapping Machine, then need advise us which kind of wrapping and capacity need, so that we could offer the price for the wrapping machine.

Capacity: 200kg/hour

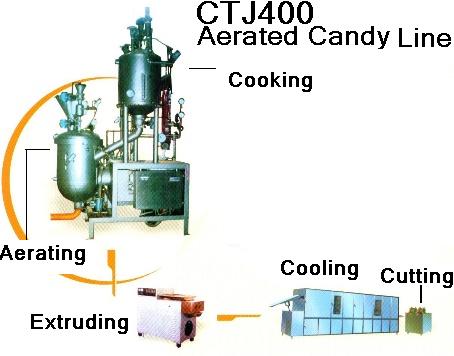

CTJ400 Aerated Candy Production Line, manufactured with the imported technology, is composed of single units for sugar melting, boiling, extruding to forming, cooling, conveying, forming cutting and packing, etc. Exclusively adopting imported pneumatic components, the line features high automation and easy operation. It changes the original inflatable candy production pattern at home, renovates the production technology of cream candy and upgrades the products. This line is applicable for the products like Juice Candy, Nougat Candy, Cream candy and Core Candy, etc. With variety of candy categories and reliable sanitary quality, it is a kind of perfect production line for inflatable candy.
