Products --> Polish Pan






Item:

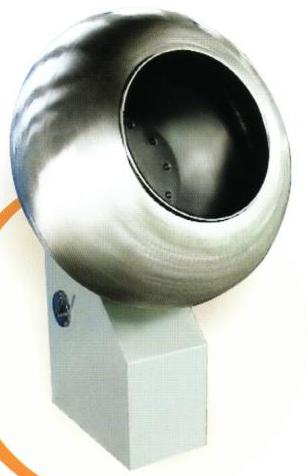

Chocolate Dragee Polish Pan

Item Number:

PGJ30

Dimensions:
1000x1000x1600mm
Packing Size:
1100x1100x1800mm
Weight:
N.W. :350 kg
G.W.:570 kg
Details:
Capacity: 45-90kg/batch
Main power:1.5kw,Rotation :30-32rpm
Dip angle:30o(nonstagecontrol),max external dia :1000mm
Optional:
If need, could add ribs inside,
  If need, could add spray gun,
  If need, base also in stainless steel,
  If need, speed variable mechanically,

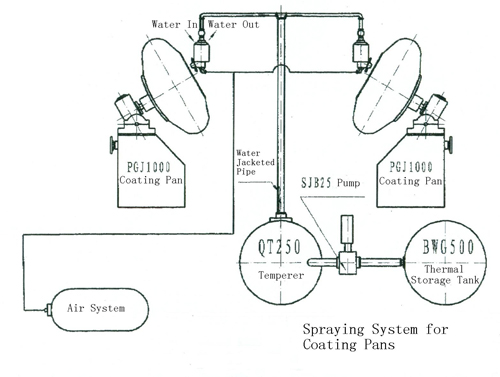

  If need, water-jacketed pipes,





It is suitable for production of different chocolates in shape such as circular, flat, oval and cylindrical etc., the chocolate through polishing are excellent in luster, color and shape. After various cylindrical chocolates packed by colored aluminum foil paper go through the pot, packing paper will be made tight, plain and clear-cut in geometry.
